In Figure 44 to Figure 46, N, M, and P have the following significance.
N = (nBlockAlign/(4*nChannels)) - 1
- - -[Equation 6]
M = 0, 1, 2, 3, ....... , N-1
- - -[Equation 7]
P = ( M * 8 ) + 1
- - -[Equation 8]
Header
Data
Header Word
Channel 0
(left)
Header Word
Channel 1
(right)
Data Word 0
Channel 0
(left)
Data Word 0
Channel 1
(right)
........
Data (total = N words/Channel )
Data Word M
Channel 0
(left)
Data Word M
Channel 1
(right)
........
Data Word N-1
Channel 0
(left)
Data Word N-1
Channel 1
(right)

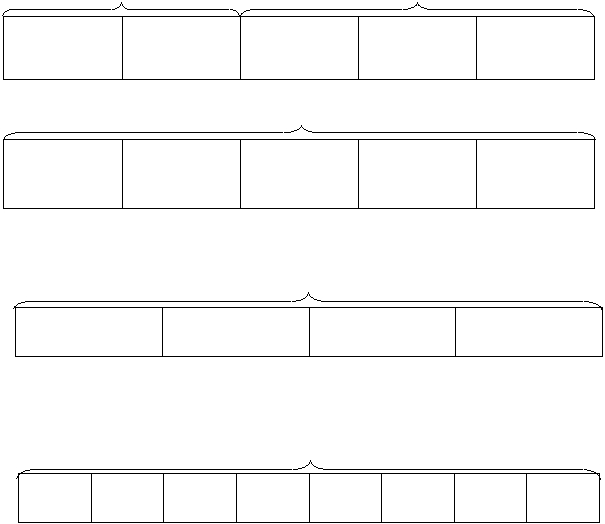

Figure 44 Packing of IMA-ADPCM Audio Data
Header Word (4 Bytes)
Sample 0
Lower Byte
Sample 0
Upper Byte
Step Table Index
Reserved Byte
Byte 0
Byte 1
Byte 2
Byte 3
Figure 45 Header Word of IMA-ADPCM Audio Data
Data Word M (4 Bytes)
Sample P
LSB MSB
P+1
LSB MSB
P+2
LSB MSB
P+3
LSB MSB
P+4
LSB MSB
P+5
LSB MSB
P+6
LSB MSB
P+7
LSB MSB
Byte 0
Byte 1
Byte 2
Byte 3
Figure 46 Data Word M of IMA-ADPCM Audio Data
